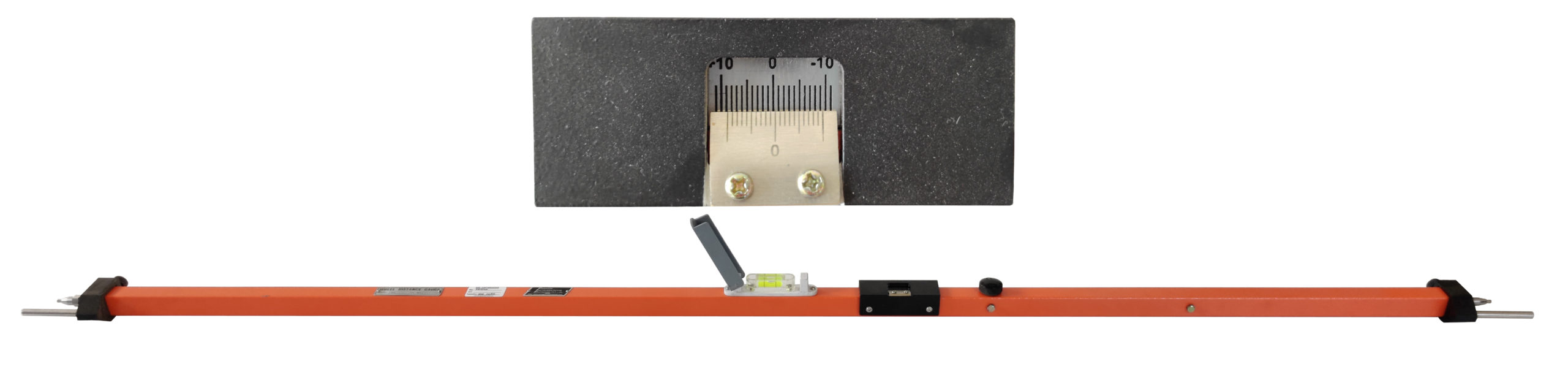

‘PIE’ Brand Wheel Distance Measuring Gauge, Model WG‑1 (V) is capable of measuring wheel distance with the accuracy of ±0.1 mm with Vernier scale.
‘PIE’ Brand Wheel Distance Measuring Gauge, Model WG‑1 (V) is capable of measuring wheel distance with the accuracy of ±0.1 mm with vernier scale. Supplied in light weight, nicely finished wooden storing & transportation box with carrying handle.
SPECIFICATIONS:
| FOR B.G. | |
| Accuracy | ± 0.1 mm |
| Least Count | 0.1 mm |
| Range | 1600 (±10) OR 1596 (±10) |
| ‘0’ Set at (Standard setting) | 1600 mm or 1596 mm |
| Weight | 2Kg Approx. |
| FOR M.G. | |
| Accuracy | ± 0.1 mm |
| Least Count | 0.1 mm |
| Range | 930 (±10) |
| ‘0’ Set at (Standard setting) | 930 mm |
| FOR N.G. | |
| Accuracy | ± 0.1 mm |
| Least Count | 0.1 mm |
| Range | 698.5 (±10) |
| ‘0’ Set at (Standard setting) | 698.5 mm |
Special feature: The measuring scale is graduated in 1 mm and reads 0.1 mm with Vernier scale.
USER NEEDS TO SPECIFY RANGE REQUIRED AND ‘0’ SET
