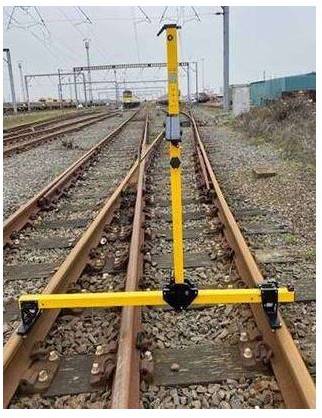

ABT 8000 – Data Logging Laser Height & Stagger Gauge
The ABT 8000 Data Logging Laser Height & Stagger Gauge is a light-weight gauge that allows the user to safely take Height & Stagger measurements of Over Head Line using laser technology as well as the ability to log and store data directly to a mobile device.
The ABT 8000 is manufactured from hard wearing and nonconductive GRP and offers a sprung foot ensuring improved user friendliness, repeatability and accuracy of measurements.
| Weight | 11 kg |
| Size | 1620mm x 1450mm x 260mm (in use)
1620mm x 245mm x 256mm (folded) |
| Cant | Range: ± 200mm
Accuracy: ± 1mm Resolution: 1mm |
| GPS | Expected Accuracy : 2.5m CEP |
| Cable Stagger | Range: -520mm to +520mm
Accuracy: ± 5mm (STD2) Resolution: ± 1mm |
| Cable Height | Range: 2 – 100m
Accuracy: ± 2mm @ 5m Resolution: 1mm |
- Fully Insulated
- Built-in Laser and Digital Display
- Rail Edge to Face of Structure (REFOS)
- GPS Tagging of OHL recording
- Dedicated Data Logging Smart Phone App
- Padded Carry Bag
- Available for Track Gauges 1435mm and 1600mm
- Overhead Line Position
- Track Geometry
- Structural Clearances
- Environmental Data
- Data Logging and Workflow
