Rolling Stock Measurement

Paragon Instrumentation’s railway tools and equipment – the rolling stock maintenance system has a great versatility, and is leveraged to measure the acceleration to which a rolling stock is subject, in every point it is required. Sensors can be installed on bogies, coaches, and axle boxes. The location of the sensors are responsible for the measurement intervals and the related band. The railway tools and equipments have a user-friendly interface that allows reading the real time data and database storage. The rolling stock maintenance system is also a tool for the off-line data analysis.

The rolling stock maintenance system installation is a function of the selected configuration. In fact, according to the required acceleration relief type, sensors can be installed on bogies, coaches, and axle boxes. Sensors will be placed in a watertight metal box, assuring great mechanical protection.

AIR SPRING HEIGHT MEASURING GAUGE

‘PIE’ make Set of two Air Spring Height Measuring Gauges (GO & NO GO), generally & functionally as per Drawing no. SK/GAUGE – 1/2021.

Bogie Spring Sorting & Colour Coding System Model PSHS-1 (E)

‘PIE’ Brand Non – Contact type, intelligent Bogie Spring sorting, Colour coding and height measurement system, make ‘PIE’ Model PSHS – 1 (E).

BUFFER HEIGHT GAUGE MODEL BHG-3 (CBC)

‘PIE’ Brand Buffer Height Gauge, Model BHG‑3 (CBC) model consists of foldable track base and vertical column with a measuring scale & pointer. This column has a verticality bubble and is foldable for compactness and ease in storing and transportation.

BUFFER HEIGHT GAUGE MODEL BHG-3 (CBC) – E

‘PIE’ brand Digital Buffer Height Gauge, Model BHG-3 (CBC) – E the gauge consists of a foldable track base and a vertical column fitted with a pointer. This column has a verticality bubble and is foldable for compactness.

Coupler Contour Gauge

‘PIE’ Brand Coupler Contour Gauge Set of two gauges for contour worn Limit gauge No. – 1 and gauge No. – 2 of G–80 manual for CBC made of hard alloy steel used for inspection of coupler body (Knuckle and guard arm) useful for reconditioning and repairing of Coupler.

DIGITAL FLANGE WEAR GAUGE MODEL FWG-1 (D)

‘PIE’ Brand Digital Flange Wear Gauge Model FWG-1 (D) for BG Electric Loco with Accuracy ±0.01 mm with Calibration Certificate.

DIGITAL ROOT WEAR GAUGE MODEL RWG-1 (D)

‘PIE’ Brand Digital Root Wear Gauge for BG Electric Loco Model RWG-1 (D) with Accuracy ±0.01 mm with Calibration Certificate.

DIGITAL SLEEPER MEASURING GAUGE MODEL SMG-1(D)

‘PIE’ Make Digital Sleeper measuring gauge Model SMG-1(D), capable of measuring sleeper dimensions.

DIGITAL TREAD WEAR GAUGE MODEL TG-1 (D)

Digital Tread Wear Gauge of robust and water resistant (IP 67) design, main frame made from hardened and ground stainless steel, hardened measuring pointers. Make ‘PIE’ Model TG-1 (D).

DIGITAL WHEEL WEAR GAUGE MODEL WWG-1 (D)

‘PIE’ make Digital Wheel Wear Gauge Model WWG-1 (D) for B.G. Locos, capable of measuring main wheel wear parameters with a resolution of 0.1 mm.

FLANGE WEAR GAUGE MODEL FWG-1 (SKDL-4445)

‘PIE’ Brand Flange wear gauge Model FWG-1– Precisely made Flange wear gauge (B.G) for thick profile as per RDSO Drawing no. SKDL–4445 made of hardened steel complete in case. The gauge measures Flange wear of wheel.

GAUGES FOR CHECKING OF AAR ‘H’ TYPE CENTER BUFFER COUPLER OF LHB COACHES.

‘PIE’ make Set of 06 gauges for checking of AAR ‘H’ type Center Buffer Coupler of LHB Coaches. All gauges are made of hard stainless steel and hardness 50 HRC. Supplied in carrying bag.

GRADIENT SPIRIT LEVEL MODEL SLG-2 (D)

‘PIE’ Make Gradient Spirit level Model SLG-2 (D) for determining rail seat slope at rail seat of sleeper.

Knuckle Stretch and Nose Wear Gauge

‘PIE’ Brand Knuckle Stretch and Nose Wear Gauge made of 5 mm thick, Carbon Steel alloy plate Hardness 40-50 HRC for inspection of Knuckle And Wear at nose of knuckles gauge No. – 3 for CBC of BTCS wagons.

Laser Based Contactless Back to Back Railway Wheel Measuring Gauge Model IMR-L

‘PIE’ Make Laser Based Contactless Back to Back Railway Wheel Measuring Gauge Model IMR – L with Calibration Checking Device/Bench and standard accessories.

LASER WHEEL PROFILOMETER MODEL LPM-5

‘PIE’ Laser Wheel Profilometer Model LPM-5 (Advanced Version) designed specifically to work as per Indian Railway Standards. The profilometer measures wheel profile very quickly by laser scanning without any contact with the wheel tread. The accompanying Android app displays the profile, wheel wear parameters and logs data.

Multipurpose Wheel Wear Measuring Gauge/qR Gauge Model WWMG-V

‘PIE’ brand Multipurpose Wheel Wear Gauge/qR Gauge our Model WFMG-V suitable for measuring flange thickness, flange height and value of qR of flange.

ROOT WEAR GAUGE MODEL RWG-1 (SKDL-4444)

‘PIE’ Brand Root wear gauge Model RWG-1 – Precisely made Root wear gauge (B.G) for thick profile as per RDSO Drawing no .SKDL–4444 made of hardened steel complete in case. The gauge measures Root wear of wheel.

Trammelling Gauge

‘PIE’ make Trammelling Gauge suitable for Casnub Bogies fitted with Vernier scale. Measuring Range: 1900 mm to 2000 mm, 2100 to 2200 mm & 3000 mm to 3100 mm. Accuracy: ±1.0 mm. Material High Grade Aluminium (6063T6), tube-size 50 mm Sq. Stainless Steel scale with hardened pointer. Supplied in light weight, nicely finished wooden storing […]

TREAD WEAR MEASURING GAUGE MODEL TWG-1 (C&W)

‘PIE’ Brand Tread Wear Measuring Gauge Model TWG-1 (C&W) for carriage and wagon, made of alloy steel with hardened measuring pointers.

TREAD WEAR MEASURING GAUGE MODEL TWG-1 (EMU)

‘PIE’ Brand Tread Wear Measuring Gauge Model TWG-1 to solid wheel EMU’s for Tyred wheels, made of hard alloy steel with hardened measuring pointers.

TRED WEAR MEASURING GAUGE MODEL TWG-1 (BG Loco)

‘PIE’ Brand Tread wear measuring gauge Model TWG-1 (BG Loco) for thick/wear adopted profile combined for B.G. Locos, made of alloy steel with hardened measuring pointers.

TYRE DEFECT GAUGE MODEL TDG-1

‘PIE’ Brand Tyre Defect Gauge/Condemning Gauge Model TDG-1 as per Plate 38 Rule 2.8.4 of IRCA made of 3mm thick hard alloy steel plate.

WHEEL DIAMETER GAUGE MODEL WD-0

PIE Mechanical Type Wheel Diameter Gauge is applicable for open wheel set. It can be operated by a single person and gives direct reading on a finely marked scale. All wheel contact pats are made from hard alloy steel. Least count is 1.0 mm

WHEEL DIAMETER GAUGE MODEL WD-1

‘PIE’ Brand Folding type portable Wheel diameter gauge Model WD-1 for B.G reading to 0.1mm with Vernier with lensiatic window complete in nicely finished wooden storing & transportation box with carrying handle.. Least count is 0.1 mm

WHEEL DIAMETER GAUGE MODEL WD-1 (D)

‘PIE’ Brand Digital Wheel Diameter Gauge with LCD Display (Folding Type) Model WD-1 (D) having accuracy of ±0.02 mm. The gauge is suitable for open wheel sets only. Supplied in nicely finished wooden storing & transportation box with carrying handles.

WHEEL DISTANCE GAUGE MODEL WG-1

‘PIE’ Brand Wheel Distance Measuring Gauge, Model WG-1, measures precisely the wheel distance of Carriage & Wagon and Locos with ±1.0 mm accuracy. It is simple and robust designed for long term use where all wheel contact points are made of carbide.

WHEEL DISTANCE GAUGE MODEL WG-1 (E)

‘PIE’ Brand DIGITAL Wheel Distance Measuring Gauge Model, WG-1 (E) B.G. fitted with built in Digital Display & Spirit Level, the gauge measures the wheel distance precisely within 30 seconds to 1 minute time and operates with rechargeable battery. the LED is back lit for visibility in pits and other low light conditions.
The gauge has memory to record at least 40 to 50 readings in it’s internal memory with auto off facility.

WHEEL DISTANCE GAUGE MODEL WG-1 (M)

‘PIE’ Brand Wheel Distance Measuring Gauge, Model WG 1 (M) fitted with Micrometer. Supplied in light weight, nicely finished wooden storing & transportation box with carrying handle.

WHEEL DISTANCE GAUGE MODEL WG-11 (E)

‘PIE’ Make Electronic Wheel Distance/ Wheel Back To Back Distance Measuring Gauge Model WG-11 (E). The unique design ensures measurement parallel to wheel axle and square to wheel back face. No bubble or spirit level centering etc. is required.

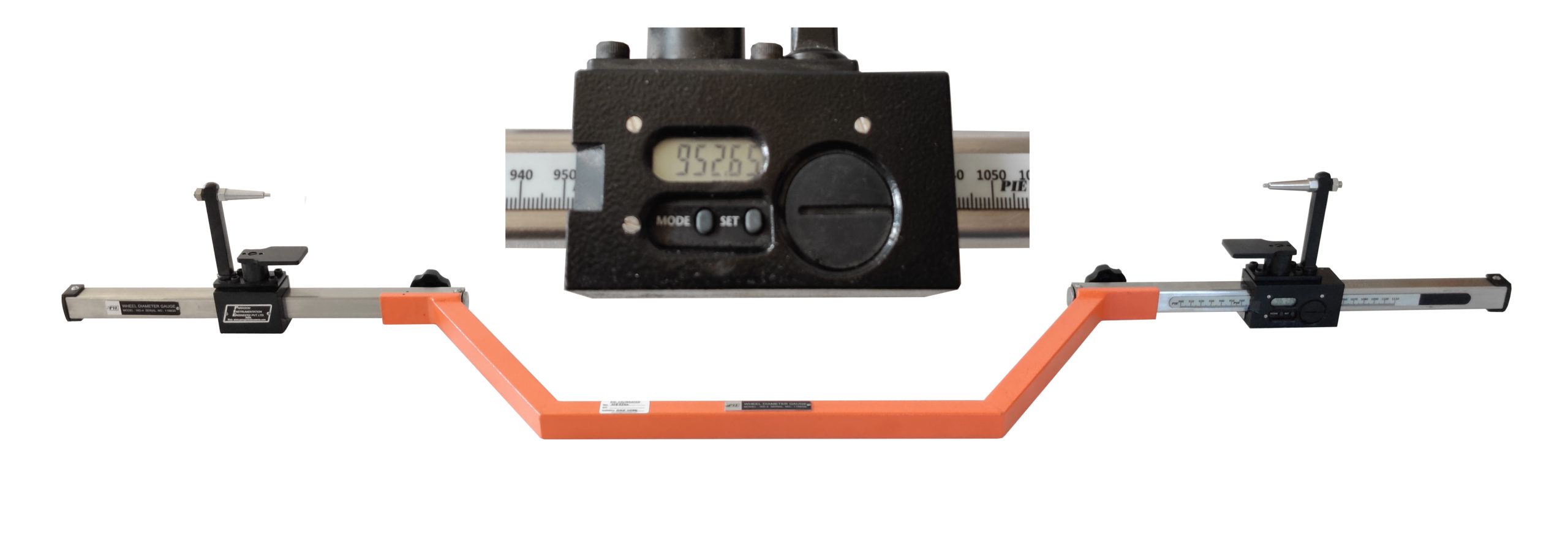

WHEEL DISTANCE GAUGE MODEL WG-4 (E)

‘PIE’ make Digital Wheel Distance Measuring Gauge Model WG-4 (E) for B.G. wheel LCD display along with spirit level. Double display systems with storage wooden box fitted with carrying handle and lock and keys arrangement.

WHEEL PROFILE GAUGE MODEL WPG-1

‘PIE’ make Wheel Profile Gauge Model WPG-1 for intermediate worn wheel profile for coaching stock as per RDSO Sketch No. 92082 made of hardened Stainless Steel
