Products

GeoFennel Auto Level, Model GFE32

GeoFennel Auto Level, Model GFE-32 is 32X Highly precise Automatic Level. This is the German Engineering at an afffordable prices.

Dust / water protection:IP 54
Mean error 1 km double levelling:± 2 mm
Telescope magnification:32 x
Working range of compensator:± 15′
Circular bubble:8′ / 2 mm
Objective diameter:45 mm
Field of view:
Shortest focussing distance:2 m
Double run levelling using index reference makers:< 1 mm
Multiplication constant:100
Levelling accuracy:2”
Horizontal circle:360°
Weight:2,5 kg
Extended size:280 x 160 x 140 mm
Temperature range:-25 °C to +50 °C

Sweden’s GPS company Satlab joins hands with PIE

SatLab Geosolutions is a Swedish global satellite positioning solutions company with offices strategically located around the world. It was founded by a group of passionate and pioneering engineers, with a total of more than 40 years of experience in the GNSS industry. In the geospatial world, surveying professionals depend on the most accurate and precise measurements to build the world we live in. At SatLab offers solutions with cutting-edge Swedish engineering and technology.

Satlab has appointed PIE as it’s authorized distributor in India.

Download Brochure Modal

Download Product Brochure

Please provide your details to access the download link.


    Name (optional):

    Email:

    Phone (optional):

    Place (optional):


    Exit Intent Modal

    Download our Brochure

    Enter your name and email address below to receive our brochure in your mail. We’ll also keep you posted on new products and company updates.

      Name (optional):

      Email:

      Phone (optional):


      Sokkia Automatic Level, Model B-20/B-40A/B30A

      A high quality Engineers’ automatic levels with the most robust compensator available on the market. Brilliant optical system for clear view at all conditions.

      The Sokkia B40A /B-30A/B-20 automatic level incorporates field-proven precise and reliable compensator for accuracy you can rely upon. The optimally designed telescope provides exceptionally bright and sharp view that reduces operator’s eyestrain. Quick collimation and horizontal angle measurement combine for fast and easy aiming of layout and alignment tasks.

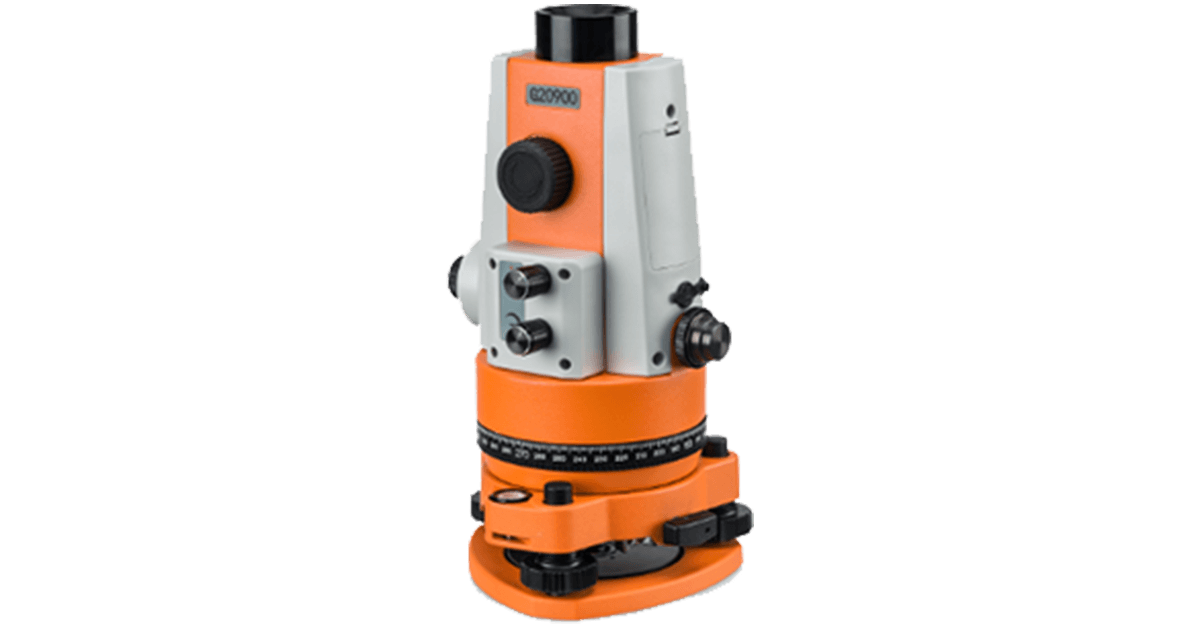

      GeoFennel Germany, Laser Plummet Model FLP-100

      A precise laser plummet incorporating a coaxial telescope for both laser and optical observations.

      Features

      • Easy to use with two laser plummets (up and down)
      • Laser dot visible up to ≥ 120 m
      • High accuracy for precision work
      Dust / water protection:IP 54
      Max. visible distance:≥ 120 m (day), ≥ 250 m (night)
      Operation temperature:-10 °C to +50 °C
      Weight:2,8 kg
      Plate level:20″ / 2 mm
      Accuracy:± 1 mm / 1.5 m (floor), ± 2,5 mm / 100 m (above)
      Deviation to optical axis:≤ 3″
      Spot size Ø:3 mm / 80 m (above)
      Power supply:2 x AA Alkaline
      Laser wave length:350 nm (floor), 635 nm (top)
      Laser class:1 (floor), 2M (top)
      Telescope magnification:26 x
      Shortest focussing distance:0,4 m
      Objective diameter:36 mm

      Theis Germany Vision H

      Theis Germany, Horizontal laser, featuring only one button – operating errors are positively excluded.

      • TILT in levelling
      • Range up to 750 m (radius)
      Laser Class/High Power (option)2/3R
      Wave length635 nm
      Output/High Power (option)< 1 mW/< 5 mW
      Range (radius)/High Power (option)ca. 300/750 m
      Horizontal/Vertical✓ / –
      Self-levelling range± 5°
      Grade range x,y
      Grade compensation
      Levelling accuracy± 1,5 mm/30 m
      Align function, horizontal/vertical *
      Speed step by step mode (rpm)600
      Scan-function
      Partial mask mode
      Windy function
      Display lighted
      Power sourceNiMH+ or Alkaline “D“ cells
      Charging time≈ 6 h
      Operating temperature-15 … +50 °C
      System of protectionIP 67
      Weight≈ 3 kg

      Sokkia Robotic Total Station, Model iX-600/iX-1200

      The iX Series robotic total stations are a trimmed down, high- performance solution. You get the efficiency of a single-operator robotic system, the power of long range reflectorless measurements, and performance as a hybrid positioning solution.

      Ultra-powerful

      UltraSonic technology is the driving force for the iX Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism- tracking possible. It’s a difference you can see and hear immediately. With a rotation speed of 150° per-second, no matter how fast you move, or how many obstacles are in the way, you cannot outrun the iX.

      Ultra-accurate

      Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line-of-sight, it’s how fast you can reacquire and get back to work.

      Ultra-slim and reliable

      Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Without traditional gears or wearing parts, the UltraSonic motors are much more rugged and durable – lasting four times longer than previous total stations

      PIE launches mobile app for 24X7 customer support

      PIE is possibly the only company in its domain offering 24X7 support to users by way of a dedicated mobile app. The app enables our users to get instant help besides the following features:

      • Access to Technical Videos in local languages
      • Direct contact with our Service Support
      • Calibration reminders and other maintenance alerts
      • Product User Manuals
