Sokkia Total Station, Model IM-55

Saturday, 17 April, 2021

The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.

Sokkia iM-55 Reflectorless Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.

Feature:

5″ Accuracy, Fast distance measurement of 0.9s..
Reflectorless operation from 30cm to 500m.
50,000-point internal memory
Upto 32GB USB Pen Drive Support
Coaxial EDM beam and laser-pointer provide fast and accurate aiming.
Ensures accuracy even with reflective sheets.
IP66 dust-proof waterproof rating.
Rugged metal chassis and heavy duty handle.

Sokkia Total Station iM55 Technical Specifications:

Model	Sokkia iM 55/Sokkia IM52 Total Station
Telescope
Magnification / Resolving Power	30x / 2.5″
Length	171mm
Objective aperture	45mm (48mm for EDM)
Image	Erect
Field of View	1°30′ (26m / 1,000m)
Minimum focus	1.3m
Reticle illumination	5 brightness levels
Angle Measurement
Display Resolution	1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001)	5″(IM-55)/2″ (IM52)
Dual Axis Compensator	Working range ±6′ (±111 mgon)
Collimation Compensation	On/Off (selectable)
Distance Measurement
Laser output (Reflectorless mode)	Class 3R / Prism / sheet mode: class 1
Range reflectorless mode	0.3 to 500m (1,640ft.)
Range prism mode	1.3 to 4,000m (4.3 to 13,120ft.)
Measuring Time
Fine Measurement Mode	0.9 sec.(Intial 1.5 sec.)
Rapid Measurement Mode	0.6 sec.(Intial 1.3 sec.)
Tracking Measurement Mode	0.4 sec.(Intial 1.3 sec.)
Interface and Data Management
Display / Keyboard	Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / alphanumeric keyboard / 28 keys with backlight
Control panel location	Single side (IM-55) / Double Side (IM-52)
Data storage (Internal memory)	Approx. 50,000 points
Data storage (Plug-in memory device)	USB flash memory (max. 32GB)
Interface	Serial RS-232C, USB2.0 (Type A for USB flash memory)
Bluetooth modem (optional)*	Bluetooth Class 1.5, Operating range: up to 10m
General
Laser pointer	Coaxial red laser using EDM beam
Levels Graphic	6′ (Inner Circle)
Circular Level	10’/2mm
Optical	Magnification: 3x Minimum focus: 0.5m from tribrach bottom
Dust and water protection	IP66 (IEC 60529:2001)
Operatig temperature	-20°C to 60°C
Size with handle (w x d x h mm)	183 x 174 x 348mm
Weight with batter and tribrach	Approx. 5.1kg
Power Supply
Battery (BDC46C) Detachable battery	Li-ion rechargeable battery
Operating time (20°C) BDC46C	Approx. 14 hours (In use of ECO mode. Fine single measurement every 30sec)

Download Brochure

GeoFennel Automatic Level, Model GFN-10

Saturday, 17 April, 2021

32 x magnification and bright optics
Robust all-metal housing
Wedge-shaped reticle
Internal circle and compensator test button
Handle for comfortable handling

Features

Robust metal housing with handle for comfortable handling
Reticle in wedge-shape for most accurate reading
Well protected internal circle
Compensator test button
Bubble reading mirror

Dust / water protection:	IP 65
Telescope magnification:	32 x
Working range of compensator:	± 15′
Levelling accuracy:	± 0,3″
Circular bubble:	8′ / 2 mm
Mean error 1 km double levelling:	± 1,0 mm
Objective diameter:	40 mm
Shortest focussing distance:	0,6 m
Weight (instrument only):	1,6 kg
Horizontal circle:	400 gon/360 Degree

Download Brochure

GeoFennel Auto Level, Model GFE32

Monday, 5 April, 2021

GeoFennel Auto Level, Model GFE-32 is 32X Highly precise Automatic Level. This is the German Engineering at an afffordable prices.

Dust / water protection:	IP 54
Mean error 1 km double levelling:	± 2 mm
Telescope magnification:	32 x
Working range of compensator:	± 15′
Circular bubble:	8′ / 2 mm
Objective diameter:	45 mm
Field of view:	1°
Shortest focussing distance:	2 m
Double run levelling using index reference makers:	< 1 mm
Multiplication constant:	100
Levelling accuracy:	2”
Horizontal circle:	360°
Weight:	2,5 kg
Extended size:	280 x 160 x 140 mm
Temperature range:	-25 °C to +50 °C

Download Brochure

Sokkia Automatic Level, Model B-20/B-40A/B30A

Tuesday, 2 March, 2021

A high quality Engineers’ automatic levels with the most robust compensator available on the market. Brilliant optical system for clear view at all conditions.

The Sokkia B40A /B-30A/B-20 automatic level incorporates field-proven precise and reliable compensator for accuracy you can rely upon. The optimally designed telescope provides exceptionally bright and sharp view that reduces operator’s eyestrain. Quick collimation and horizontal angle measurement combine for fast and easy aiming of layout and alignment tasks.

Download Brochure

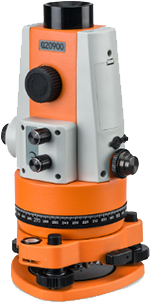

GeoFennel Germany, Laser Plummet Model FLP-100

Tuesday, 2 March, 2021

A precise laser plummet incorporating a coaxial telescope for both laser and optical observations.

Features

Easy to use with two laser plummets (up and down)
Laser dot visible up to ≥ 120 m
High accuracy for precision work

Dust / water protection:	IP 54
Max. visible distance:	≥ 120 m (day), ≥ 250 m (night)
Operation temperature:	-10 °C to +50 °C
Weight:	2,8 kg
Plate level:	20″ / 2 mm
Accuracy:	± 1 mm / 1.5 m (floor), ± 2,5 mm / 100 m (above)
Deviation to optical axis:	≤ 3″
Spot size Ø:	3 mm / 80 m (above)
Power supply:	2 x AA Alkaline
Laser wave length:	350 nm (floor), 635 nm (top)
Laser class:	1 (floor), 2M (top)
Telescope magnification:	26 x
Shortest focussing distance:	0,4 m
Objective diameter:	36 mm

Download Brochure

Theis Germany Vision H

Tuesday, 2 March, 2021

Theis Germany, Horizontal laser, featuring only one button – operating errors are positively excluded.

TILT in levelling
Range up to 750 m (radius)

Laser Class/High Power (option)	2/3R
Wave length	635 nm
Output/High Power (option)	< 1 mW/< 5 mW
Range (radius)/High Power (option)	ca. 300/750 m
Horizontal/Vertical	✓ / –
Self-levelling range	± 5°
Grade range x,y	–
Grade compensation	–
Levelling accuracy	± 1,5 mm/30 m
Align function, horizontal/vertical *	–
Speed step by step mode (rpm)	600
Scan-function	–
Partial mask mode	–
Windy function	–
Display lighted	–
Power source	NiMH+ or Alkaline “D“ cells
Charging time	≈ 6 h
Operating temperature	-15 … +50 °C
System of protection	IP 67
Weight	≈ 3 kg

Download Brochure

Sokkia Robotic Total Station, Model iX-600/iX-1200

Tuesday, 2 March, 2021

The iX Series robotic total stations are a trimmed down, high- performance solution. You get the efficiency of a single-operator robotic system, the power of long range reflectorless measurements, and performance as a hybrid positioning solution.

Ultra-powerful

UltraSonic technology is the driving force for the iX Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism- tracking possible. It’s a difference you can see and hear immediately. With a rotation speed of 150° per-second, no matter how fast you move, or how many obstacles are in the way, you cannot outrun the iX.

Ultra-accurate

Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line-of-sight, it’s how fast you can reacquire and get back to work.

Ultra-slim and reliable

Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Without traditional gears or wearing parts, the UltraSonic motors are much more rugged and durable – lasting four times longer than previous total stations

Download Brochure

Sokkia Total Station iM55 Technical Specifications:
