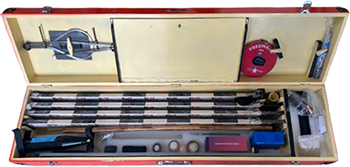

‘PIE’ Brand Export quality BRI Tool Kit, Model BRI-1 for Bridge Inspection and maintenance.
Track Measurement
Track Measurement
The irregularities in the railway tracks measurements, particularly the urban railway infrastructures, are one of the primary causes for the sounds and vibrations. Additionally, repetitive loading may also lead to debilitation of the structural elements of the rolling stock maintenance tools. This further leads to an increase in the maintenance costs and reduction of service life. Monitoring these inconsistencies on a regular basis enables the network rail managers to apply proactive measures restricting further damage. The railway tools and measuring equipments for corrugation with particular regard to the analysis equipment for evaluating the acceptability in relation to the railway system. The rolling stock maintenance tools used for treating railway profiles have been also utilized for the processing of railway wheel profile gauge.
CENTER LINE GAUGE MODEL – CLG-1
‘PIE’ Brand Specially designed Center Line Gauge Model CLG-1 for maintaining rail distance from center of proposed track.
CHAMFERING TOOL KIT MODEL CK-1
‘PIE’ Brand Chamfering Tool Kit Model CK-1 used for removing the buss of drilled in the web of Rail. This model is compact, light weight and convenient to carry & use.
CHAMFERING TOOL KIT MODEL CK-2
‘PIE’ Brand Chamfering kit, Model CK-2, as per RDSO Drg. used for removing the burrs of drilled holes in the web of rail. It consists of the following items duly packed in storing box.
CHAMFERING TOOL KIT MODEL CK-3
‘PIE’ Brand Chamfering Kit (portable) for Earth bond hole Model CK-3 used for removing the buss of drilled in the web of Rail.
CHAMFERING TOOL KIT MODEL CK-4
‘PIE’ Brand Chamfering Kit (portable) for Earth bond hole Model CK-4 used for removing the buss of drilled in the web of Rail.
CONTINUOUS RAIL THERMOMETER MODEL CRT-1
‘PIE’ Brand Continuous Rail Thermometer Model CRT-1, generally confirming to RDSO specification but improved. The Thermometer records rail temperature for up to 9 months on an hourly basis.
DIGITAL CORROSSION MEASURING GAUGE MODEL – PCMG-2
‘PIE’ brand Digital Corrosion Measuring Gauge Model PCMG-2 is used for measuring the depth of cavity developed due to corrosion of rails.
DIGITAL RAIL TEMPERATURE MEASURING DEVICE MODEL PRT-01
‘PIE’ Make Digital Rail Temperature Measuring Device (with Max – Min facility) Model PRT-01. The device measures rail temperature by placing it on the web of rail which is Railway’s recommended practice. It shows the actual temperature of the rail.
DIGITAL SLEEPER MEASURING GAUGE MODEL SMG-1(D)
‘PIE’ Make Digital Sleeper measuring gauge Model SMG-1(D), capable of measuring sleeper dimensions.
Digital Switch Rail Vertical Wear Measuring Gauge Model PSWG-1
‘PIE’ make Digital Switch Rail Vertical Wear Measuring Gauge Model PSWG-1 used to measure switch rail/point rail/check rail reduction relative to the basic rail and the point rail reduction relative to the wing rail.
ELECTRONIC TRACK GAUGE MODEL AL-6 (E)
‘PIE’ make Electronic Track and Turnout Gauge Model AL-6 (E) for Broad Gauge (1676 mm) are made of extruded aluminium section, capable of measuring Track Gauge, Super Elevation (Cant), Check Rail Gauge, Back to Back Distance & Flange way Clearance.
FEELER GAUGE
Shim feeler gauge 4’ long having 10 leaves of 0.05mm to 0.80mm.
GRADIENT SPIRIT LEVEL MODEL SLG-1
‘PIE’ Brand Gradient spirit level with Magnetic attachment Model SLG–1 is used to provide in 1 in 20 (5%) or 1 in 40 (2.5%) inclination of rails. The spirit level is useful for Track layers and provided complete in box.
GRADIENT SPIRIT LEVEL MODEL SLG-2 (D)
‘PIE’ Make Gradient Spirit level Model SLG-2 (D) for determining rail seat slope at rail seat of sleeper.
INCLINATION CHECKING GAUGE MODEL – TLG-1
‘PIE’ Brand Inclination Measuring Gauge Model TLG used to maintain inclination of rails.
INSULATED TRACK CUM LEVEL GAUGE MODEL- ST-2
‘PIE’ Brand Export Quality Insulated level cum gauge Model-ST-2 with built in spirit level, made from high tensile extruded steel tubing.
INSULATED TRACK CUM LEVEL GAUGE MODEL- ST-2 (RF)-4″ Height
‘PIE’ Brand Export Quality Insulated level cum gauge (folding type) Model-ST-2 (RF)-4″ Height with built in spirit level, made from high tensile extruded steel tubing.
INSULATED TRACK CUM LEVEL GAUGE MODEL- ST-2 (RF)-8″ Height
‘PIE’ Brand Export Quality Insulated level cum gauge (folding type) Model-ST-2 (RF)-8″ Height with built in spirit level, made from high tensile extruded steel tubing.
INSULATED TRACK GAUGE cum LEVEL MODEL – LG-2 (I)
‘PIE’ brand Export quality latest design Box Type Precision Insulated Track Gauge cum level Model LG-2 (I) for B.G as per RDSO specification TM-58.
KZV Krab Heavy Weight Railway Track Geometry Trolley, Model 84.09
Krab 84.09 Track Geometry measuring trolley has been presented on a railway market for many years. Its robust construction and average weight of 67 kg makes it perfect for hand-pushed measuring as well as for occasional coupling with a railway vehicle. Approved by DB/NETZE
KZV Krab Railway Track Geometry Trolley, Model S-Light
Krab S-light Track Geometry Trolley is designed with a focus on low weight and easy operation. The measurement speed is limited to approximately 15km/h. The trolley weights around 30kg, only one operator is capable of taking it away from the track.
Measures almost all Rail Track Parameters.
KZV Rail Corrugation Measuring Trolley, Model GEKON
GEKON is a measuring equipment designed for contactless corrugation measuring of both vignol and grooved rails. GEKON can be used for evaluation of railhead surface microgeometry evaluation.
Model SLG-3(D)
‘PIE’ Brand RAIL GRADIENT MEASURING LEVEL Model SLG-3(D) for checking rail inclination on slab track and also on sleeper mounted rail.
PORTABLE TRACK GAUGE CALIBRATION BENCH
‘PIE’ brand Portable Track Gauge Calibration Bench made of steel extruded tubing provided with hardened steel testing fixtures set at defined track gauge useful for onsite checking and calibration of Track Gauges.
PWI TOOL KIT MODEL TK – 1
‘PIE’ Brand Export Quality PWI Tool Kit Model TK‑1, consisting of 27 items to assist the user in measurement of track parameters with ease.
PWI TOOL KIT MODEL TK – 2
‘PIE’ Brand Export Quality PWI Tool Kit Model TK‑2, consisting of 28 items to assist the user in measurement of track parameters with ease.
Rail Profile Gauge Cum Recorder – Basic Version Model RPCS Basic 2.0
Rail Profile Gauge Cum Recorder – Basic Version Model RPCS Basic 2.0 along with ruggedized Android Tablet is useful in Checking the manufactured rail profile at takeover, Periodic checking the rail wear for planning the maintenance, Measuring the eliminated material and measuring the profile during grinding activity (FWB Machine)
Rail Profile Gauge Cum Recorder – Model RPCS Basic 2.0 with Frog (Point) Measurement attachment.
Rail Profile Gauge Cum Recorder – Basic Version Model RPCS Basic 2.0 With a “Frog” attachment the RPCS device is capable of measuring the cross-section profile of the frogs at turnouts.
RAIL SLIDING CALIPER MODEL- RC-1
‘PIE’ brand Rail Sliding Caliper Model RC – 1 complete in cordura case capable of measurement of following: – Width of Rail Head, Thickness of Web, Width of foot and Height of Rail. Least count 1.0 mm. Covers a wide range of rail sections.
RAIL WEAR MEASURING GAUGE MODEL RWG-2
‘PIE’ Brand Export quality Rail Wear Measuring Gauge Model RWG-2 for measuring head wear, side wear and radius wear of a particular rail section.
RAIL WELDING STRAIGHT EDGE
‘PIE’ Brand Export Quality Rail Welding Straight Edge with grade 1 accuracy as per IS-2220-1990 for checking flatness and measuring evenness of welded rails.
SPIRIT LEVEL MODEL SL-2
‘PIE’ Brand Special Spirit Level Model SL–2 with double housing and provided with arrangement for subsequent adjustment, without box. Generally as per RDSO latest Drg. no. TM-2004, Specification no. TM-52. Approved and accepted by RDSO & Railway Board.
TAPER GAUGE
‘PIE’ brand Export quality Tapered gauge duly graduated to give 1 mm up to 25 mm, suitable for measurement of flange wear and clearances and gaps on railway track and carriages.
TRACK GAUGE CUM LEVEL MODEL AL-3
High Precision Track Gauge cum Level Model AL – 3 made of extruded aluminium section, capable of measuring Track Gauge, check rail gauge and super elevation precisely by means of a dial mechanism.
TRACK GAUGE CUM LEVEL MODEL AL-5
‘PIE’ brand High Precision Track Gauge cum Level Model AL-5 made of extruded aluminium section, capable of measuring Track Gauge and super elevation (cant) precisely by means of a an easy to read dial mechanism supplied in carrying and storing padded bag.
TRACK SQUARE MODEL TS-1
‘PIE’ Brand Track Square our Model TS-1. The Track Square is light weight, Tubular, rugged design with solid metallic extrusion up to the opposite rail, useful for squaring of the rail sleepers. It can be used on any design of sleepers.
TRACK SQUARE MODEL TS-1 (T-Type)
‘PIE’ Brand Track Square our Model TS-1 (T – Type Small Size). The Track Square is light weight, rugged design useful for squaring of the rail sleepers. It can be used on any design of sleepers. (T – Type Small).
VERSINE MEASURING KIT MODEL VK-1
‘PIE’ Brand Versine Measuring Kit Model VK-1., consisting of a pair of versine holders, versine scale, nylon cord on winder, complete in Cordura case. It is suitable for measuring versine of Railway Curves and Horizontal alignment.
VERSINE MEASURING KIT MODEL VK-2
‘PIE’ brand export quality Versine Measuring Kit Model VK‑2 consisting of a pair of rail mounting brackets, Versine scale (stainless steel) with long Nylon cord on winder in padded Cordura case. The Alignment accuracy obtained by using this device is < 1 mm.

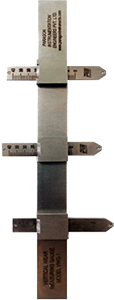

VERTICAL WEAR MEASURING GAUGE MODEL VWG-1
‘PIE’ brand Vertical Wear Measuring Gauge Model VWG‑1 as per RDSO specifications, made of hard alloy steel with measuring feelers.
